SYIC

Taichung, Taiwan

Not vetted by Gateway

Restricted-party screening Oct 2026

WhatsApp Gateway

Address: Qingshui District, Taichung
Business type: Manufacturer
Legal name: Shin-Yain Industrial Co., Ltd.
Established: 1979 (stated by the supplier)
Main port: Taichung (TWTXG)

About

Shin-Yain Industrial Co., Ltd. (SYIC) is a machine tool accessory maker in Qingshui District, Taichung, Taiwan. It says it was established in 1979 and has more than 500 employees. The company makes tool holders, cutting tools, tool posts, accessories and fixtures, including BT, CAT, DAT, HSK, PSC and VDI taper tool holders, collet chucks, milling chucks, boring heads and angle head holders.

SYIC lists ISO 9001:2015 and ISO 14001:2015 certification and says it holds more than 300 patents worldwide. Its history page says it started exporting products and showing at global exhibitions, and that it set up a company in Ho Chi Minh City, Vietnam to serve that market.

Photos

Products

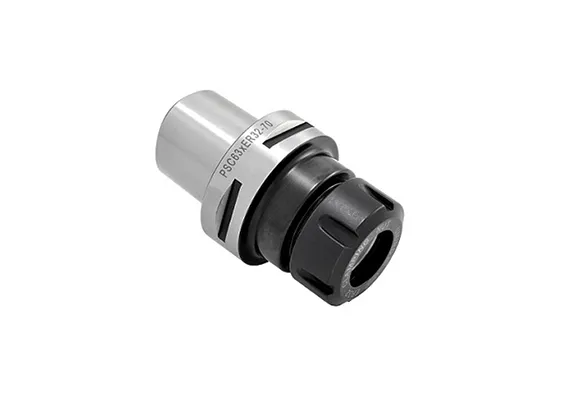

ER Collet Tool Holder
An ER collet tool holder made according to DIN ISO 15488, for holding drills, taps, mills and reamers. The listing recommends tightening the clamping nuts with a torque wrench. It is offered in BT, CAT, DAT, HSK, PSC and other shank series.
Specifications
Standard
DIN ISO 15488
Length (L)
98.4
Size range
1 ~ 10
Thread (T)
M10 x 1.5P
Sample model
BT30xER16A-50
Weight (KGS)
0.45
U.S. import duty
HTS code 8466.10.01.75
Estimated U.S. import duty on $10,000 of ER Collet Tool Holder from Taiwan: 10% ($1,000)
General rate of duty (Column 1): 3.9%
Section 301 forced labor: 6.1%
As of Oct 29, 2026. Planning estimate, not a customs ruling.
Open in the tariff calculator
Ask about this product Get your Gateway rate

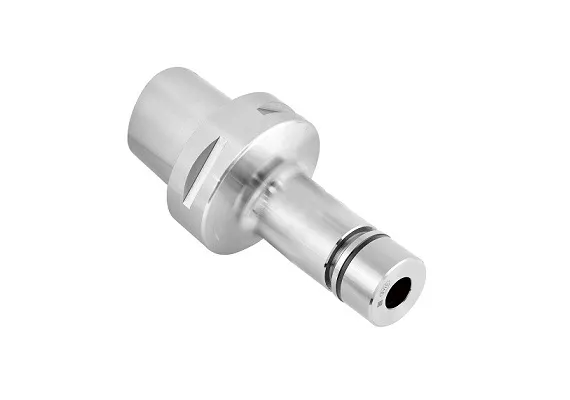

PRO-E Excellent Collet Chuck
1 of 2
A collet chuck tool holder presented as an upgrade beyond ER tool holders, used with ER collets (ISO 15488). An enlarged holder bore shortens the tool overhang and improves runout accuracy and machining stability. It is offered in SBT, SCAT, SDAT, HSK and PSC series.
Specifications
Length (L)
118.4
Size range
1 ~ 10
Thread (T)
M10 x 1.5P
Collet type
ER collet (ISO 15488)
Sample model
SBT30xPRO-E16-70
Weight (KGS)
0.58
U.S. import duty
HTS code 8466.10.01.75
Estimated U.S. import duty on $10,000 of PRO-E Excellent Collet Chuck from Taiwan: 10% ($1,000)
General rate of duty (Column 1): 3.9%
Section 301 forced labor: 6.1%
As of Oct 29, 2026. Planning estimate, not a customs ruling.
Open in the tariff calculator
Ask about this product Get your Gateway rate

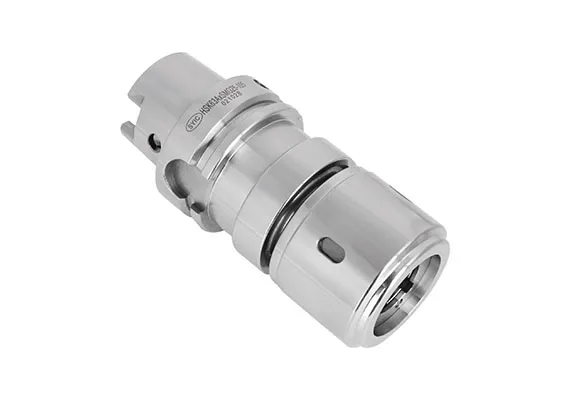

SMG Non-Pullout Milling Chuck
A non-pullout milling chuck for machining difficult-to-cut materials such as titanium and nickel alloys. A patented positioning chip and backlash remove screw keep the tool from slipping or pulling out. It has three coolant grooves and takes coolant pressure up to 70 bar.
Specifications
Used with
standard Weldon tools (ISO3338-2, JIS B4005, DIN1835)
Length (L)
165.4
Thread (T)
M16x1.5P
Sample model
SBT40xSMG25-100
Weight (KGS)
2.40
Coolant grooves
3 coolant grooves
Coolant pressure
70bar
U.S. import duty
HTS code 8466.10.01.75
Estimated U.S. import duty on $10,000 of SMG Non-Pullout Milling Chuck from Taiwan: 10% ($1,000)
General rate of duty (Column 1): 3.9%
Section 301 forced labor: 6.1%
As of Oct 29, 2026. Planning estimate, not a customs ruling.
Open in the tariff calculator
Ask about this product Get your Gateway rate

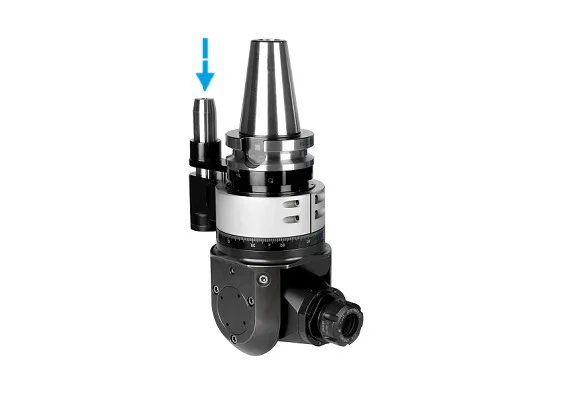

SAU Angle Head Holder
A universal angle head holder for medium cutting that adjusts from 0 to 90 degrees in 1 degree steps. It runs at up to 4000 rpm with 40 N-m of torque, feeds coolant through the dowel pin and works with automatic tool change systems.
Specifications
Collet
ER32
Torque
40 N-m
Size range
3 ~ 20
Sample model
BT50xSAU32E-328
Weight (KGS)
20.9
Angle adjustment
0˚ to 90˚
Maximum revolution
4000rpm
U.S. import duty
Ask Gateway to classify this product
Open in the tariff calculator
Ask about this product Get your Gateway rate

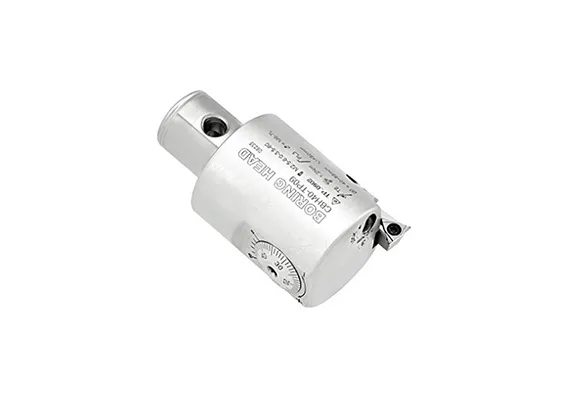

CBH Finish Boring Head
A finish boring head with a boring range of 20 to 202 mm and 10 micron adjustment per division on diameter. An internal lead screw with inner lubrication keeps chips out, and a coolant nozzle cools the insert. It can be used for reverse boring.
Specifications
Insert
TB..0601
Adjustment
10μm on diameter
Boring range
ø20 ~ ø202mm
Sample model
CBH20 - TB06
Torque (N.m)
0.6
Weight (KGS)
0.19
Boring range (CBH20)
20 ~ 26
U.S. import duty
Ask Gateway to classify this product
Open in the tariff calculator
Ask about this product Get your Gateway rate

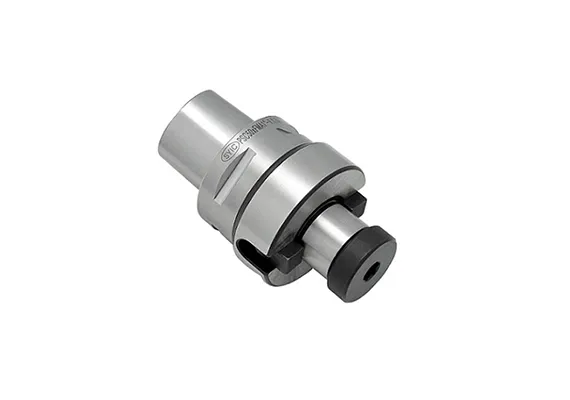

FMA Face Mill Arbor
A face mill arbor in inch sizes with an h6 tolerance on the cutter connection for less chatter and longer cutter life. The standard screw has no coolant hole, and a coolant flute screw is available to order separately.
Specifications
D
50
d 1
25.4
Size
Inch size
Length (L)
113.4
Sample model
BT30xFMA25.4-45
Weight (KGS)
1.00
Tolerance of d1
h6
U.S. import duty
HTS code 8466.10.01.75
Estimated U.S. import duty on $10,000 of FMA Face Mill Arbor from Taiwan: 10% ($1,000)
General rate of duty (Column 1): 3.9%
Section 301 forced labor: 6.1%
As of Oct 29, 2026. Planning estimate, not a customs ruling.
Open in the tariff calculator
Ask about this product Get your Gateway rate

Transit timefrom Taiwan ports

Ocean transit, port to port: about 17 days to the West Coast, 37 to the East Coast.

U.S. import duty

Estimated U.S. import duty on $10,000 of ER Collet Tool Holder from Taiwan: 10% ($1,000)

General rate of duty (Column 1): 3.9%
Section 301 forced labor: 6.1%

As of Oct 29, 2026. Planning estimate, not a customs ruling.

Open in the tariff calculator
